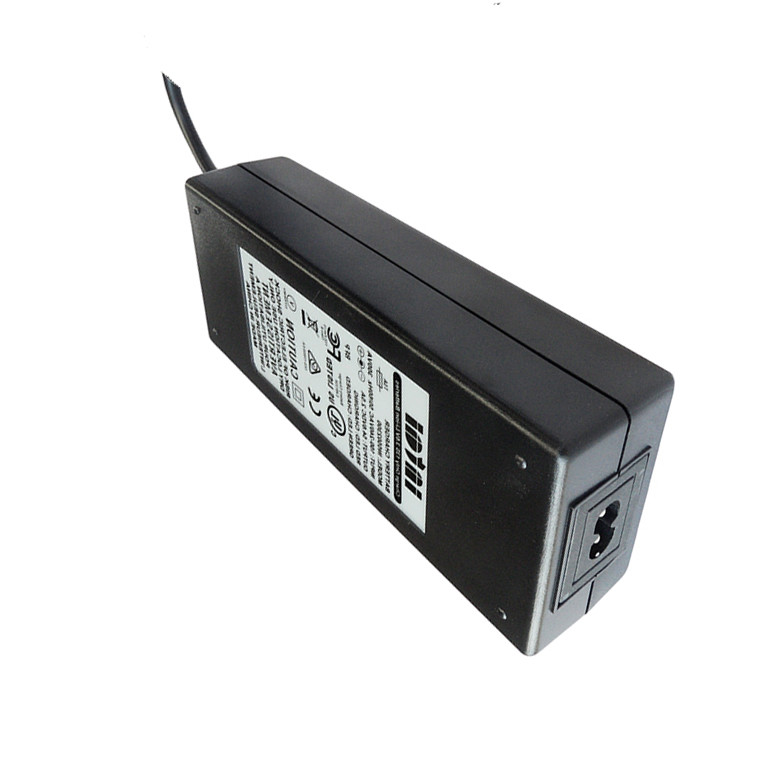

Scooter battery charger
Model :IN5802200
Output :58.4V 2.2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year

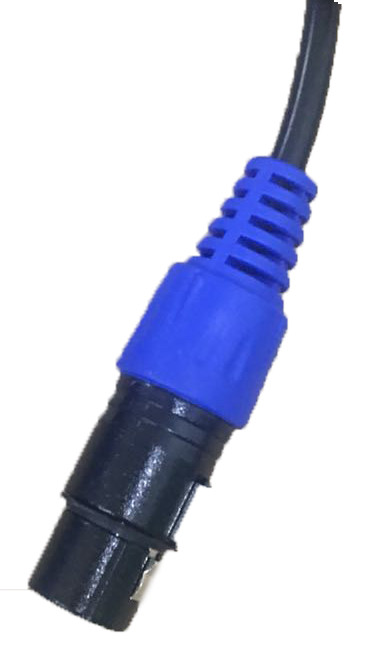

Buy this quality replacement electric skateboard charger for Onewheel self-balancing electric skateboard with 48V 16S LiFePO4 battery. The 58.4V onewheel battery charger is equipped with a female XLR plug and suited for Onewheel Original and Onewheel+. This high power lifepo4 battery charger employs modern LFP charge algorithms to enable accurate and safe charging, runs at 2.2A until the battery voltage reaches 58.4V, then holds for float charging and shuts off the output when cells are fully charged so that the scooter battery charger can be left connected for long periods. The onewheel charger is compact, durable and compatible with the original. The IN5802200 58.4V battery charger for electric scooters is UL/cUL 1012 listed and comes with excellent EMC performance and 3 year warranty.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 36-58.4V |
Open Circuit Voltage | 58.4V±5% | |
Charge Current | 2.2A±5% | |
Battery Type | 16S cell Lifepo4 battery | |
Battery capacity recommended | 5-10AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class II battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The onewheel battery charger replacement is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the onewheel charger
Red |
|
Green |
|
Red flash |
|

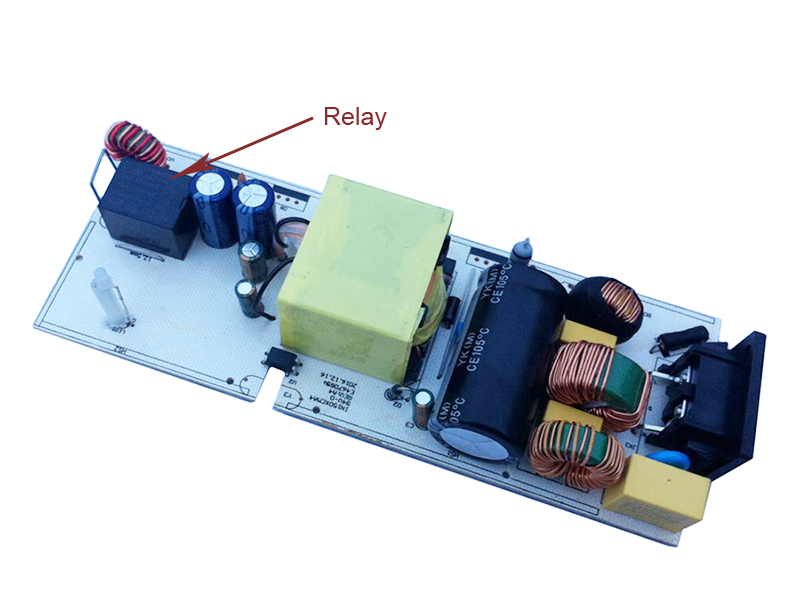

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 58.4V 2.2A battery charger for electric scooters operates safely and silently. With the application of soft start technology, the output is spark free.

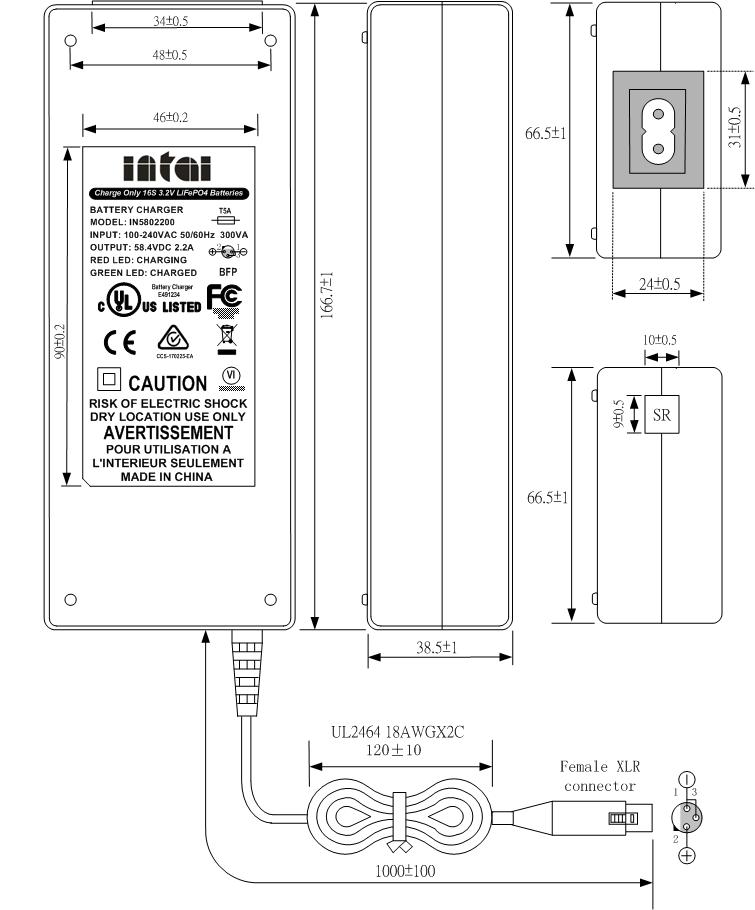

Mechanical details (mm)
Safety certificate
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
