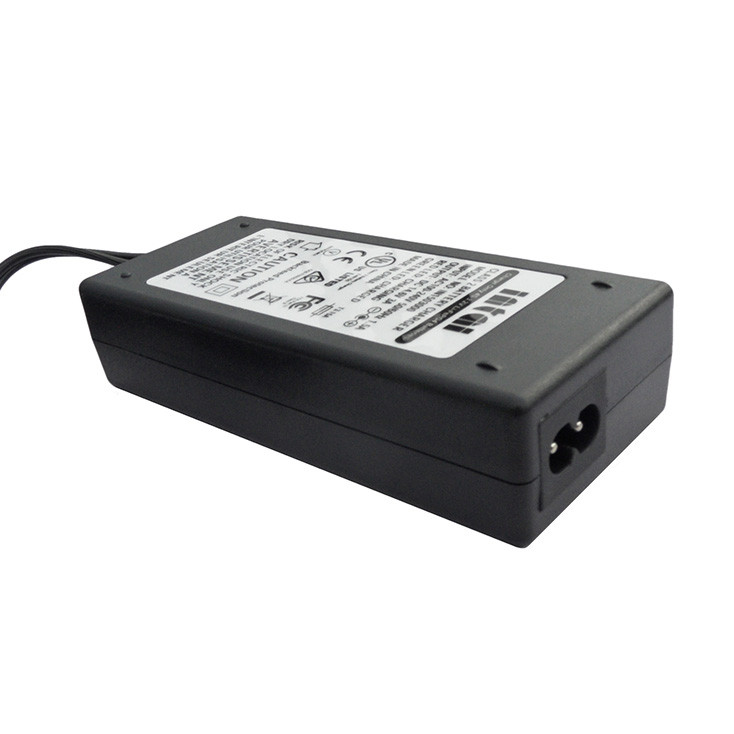

Smart battery charger for lithium ion battery
Model :IN2102000
Output :21V 2A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3
The IN2102000 18V smart battery charger for lithium ion battery extends battery life and optimizes battery performance. The battery charger 18V will accept a wide 85 to 265Vac input and has nominal 18V outputs for use with 5S lithium packs. Featuring pre-charging, the smart li-ion battery pack charger is able to auto distinguish bad battery and indicate malfunction, activate over-discharged cells. The smart lithium battery chargers automatically stop when battery pack is fully charged. Like our other lithium charger models, it is safety certified and comes with excellent EMI performance.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 12-21V |
Open Circuit Voltage | 21V±5% | |
Charge Current | 2A±5% | |
Battery Type | 5S cell 18V Lithium ion battery | |
Battery capacity recommended | 5AH~12AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.3kgs |
The smart li-ion battery pack charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the battery charger 18V

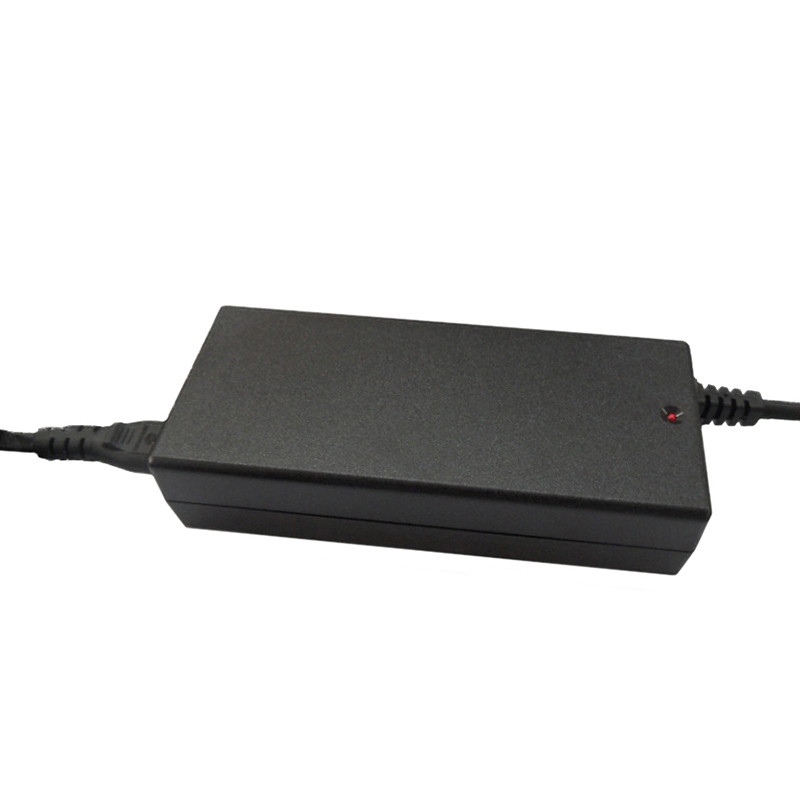

Red | ● Charging or disconnect form the batteries |

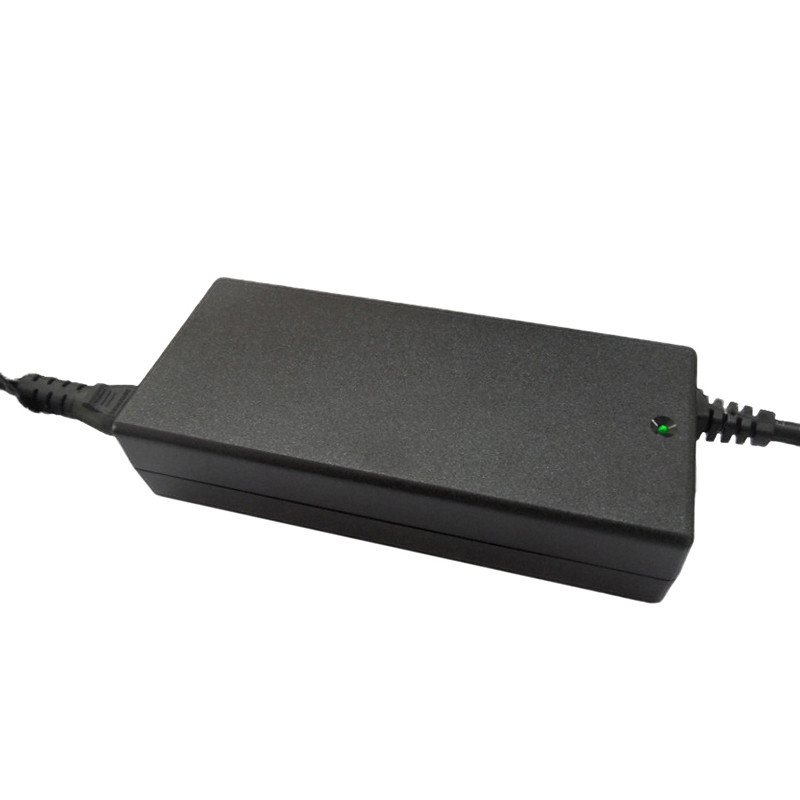

Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The 21V 2A smart battery charger for lithium ion battery works silently and safely. With the application of soft start technology, the output is spark free.

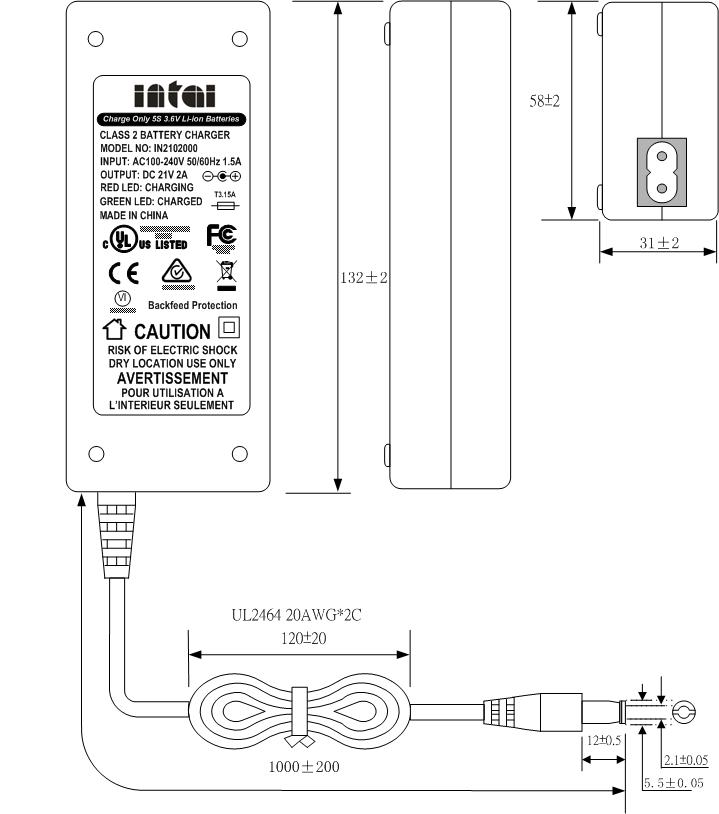

Mechanical Details(mm)
