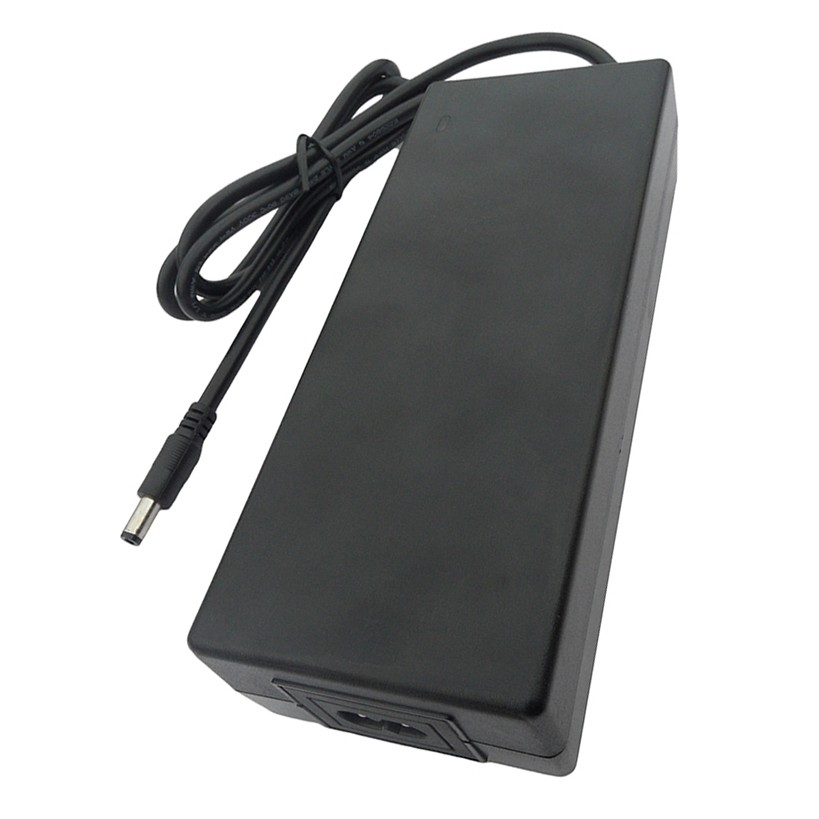

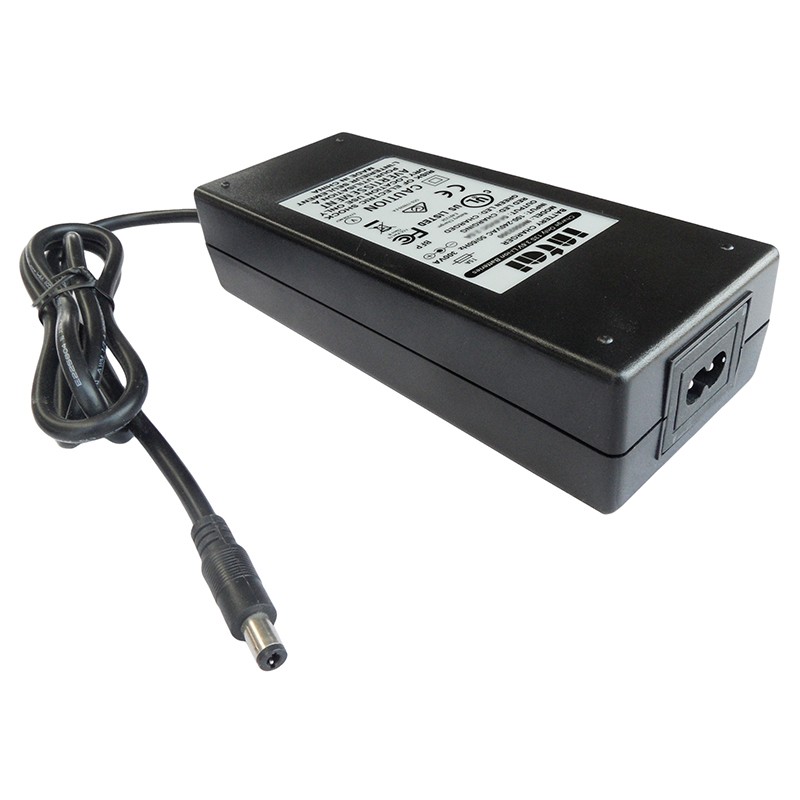

Smart lead acid battery charger
Model :IN4402000
Output :43.8V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai Power Supply Co., Ltd. manufactures a wide selection of smart lead acid battery charger designed for use on Flooded, AGM, and Gel style lead acid batteries, which have been known as the best lead acid battery charger in the industry. The designs fulfill power requirements ranging from 5 watts to 500 watts. The 36V 2A intelligent lead acid battery charger adapter features:
Automatically stops charging when the batteries are fully charged
Modern algorithms to maximize the capacity and service life of the battery pack
Protects against reverse polarity, short circuit, backfeed
Works quietly and spark proof
Restarts charging automatically after batteries self-discharge to a preset voltage drop
High reliability and safety
UL/cUL/CE/RCM/PSE rating
Factory direct sales price
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 20-43.8V |
Open Circuit Voltage | 43.8V±5% | |
Charge Current | 2A±5% | |
Battery Type | 3S 12 volt sealed lead acid battery | |
Battery capacity recommended | 8AH~20AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Power Units other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 36V 2A smart lead acid battery charger adapter is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the lead acid battery charger PSE approved
Red |
|
Green |
|
Red flash |
|

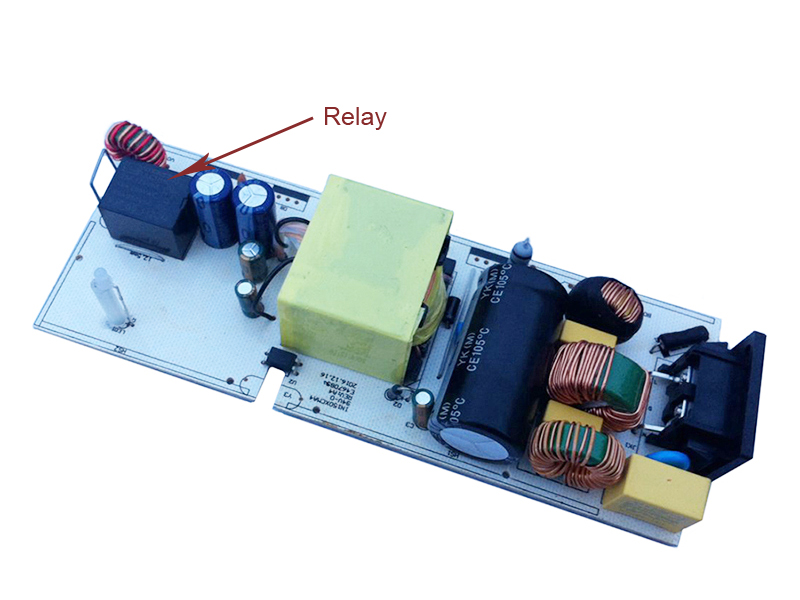

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

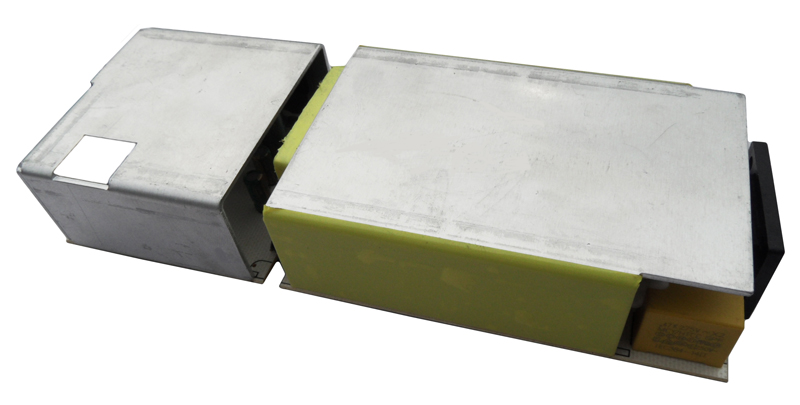

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The charger adapter works silently and safely. With the application of soft start technology, the output is spark free.

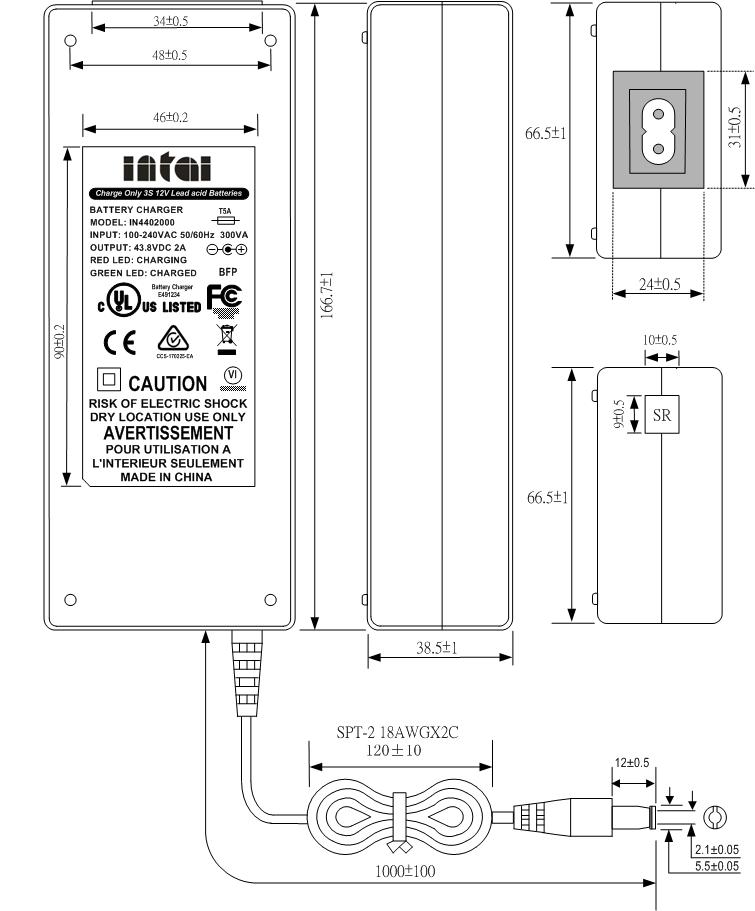

Product dimension(mm)
Safety certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
