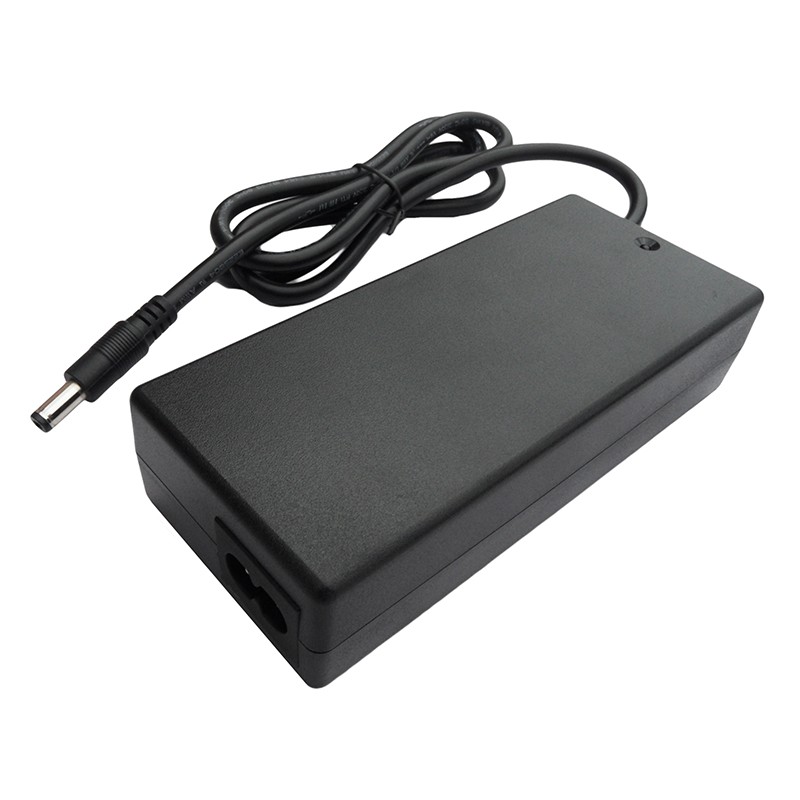

Switching adapter 100 240V

Model :IN1355000

Output :13.5V 5A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The universal 100 240V AC adapter output 13.5V 5A employs an isolated-flyback power-supply controller that provides Constant-Voltage (CV) using an optical coupler to improve transient response to large-load steps. The switching adapter 100 240v processes information from opto-coupled feedback and an auxiliary flyback winding for high-performance control of output voltage and current. The output voltage is regulated accurately by a high-performance voltage-mode amplifier with an accurate voltage reference. With a wide input range, the 100 240V 50 60hz adapter in fact operates from an universal input of 85-265Vac.
The 100 240V AC adapter comes with excellent efficiency performance. Its power-saving technologies limit the no-load power consumption to lowest level. The precise output over-voltage and over-load protection greatly enhance the system reliability. Effective thermal management reduces thermal stress on power supply reliability, allows the 120V to 240V adapter to operate at full power in higher ambient temperatures.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.9
Output	Output Voltage	13.5V±5%
	Rated Current	5A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

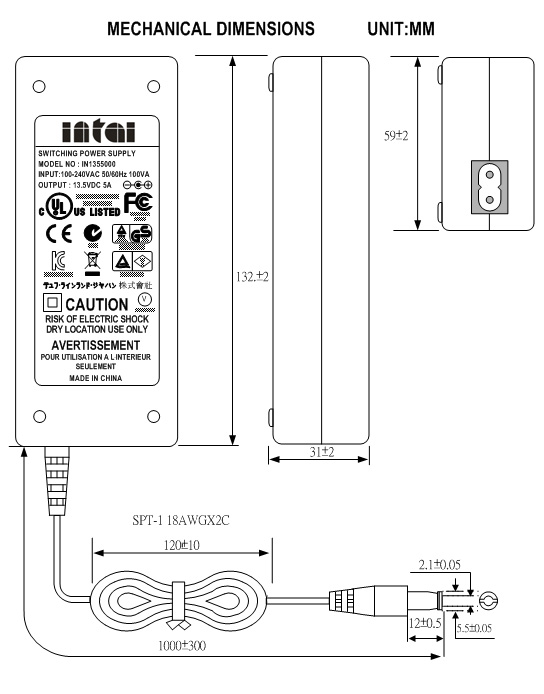

Product Dimension

adapter 100 240v

Safety Certificates

100 240v ac adapter

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

universal 100 240v ac adapter

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

adapter 100 240v
