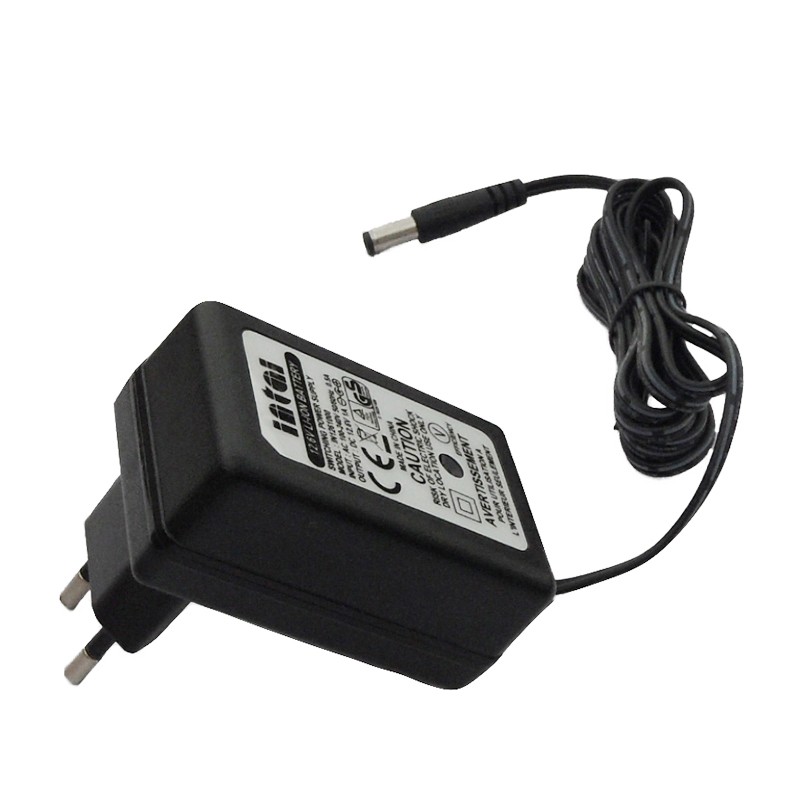

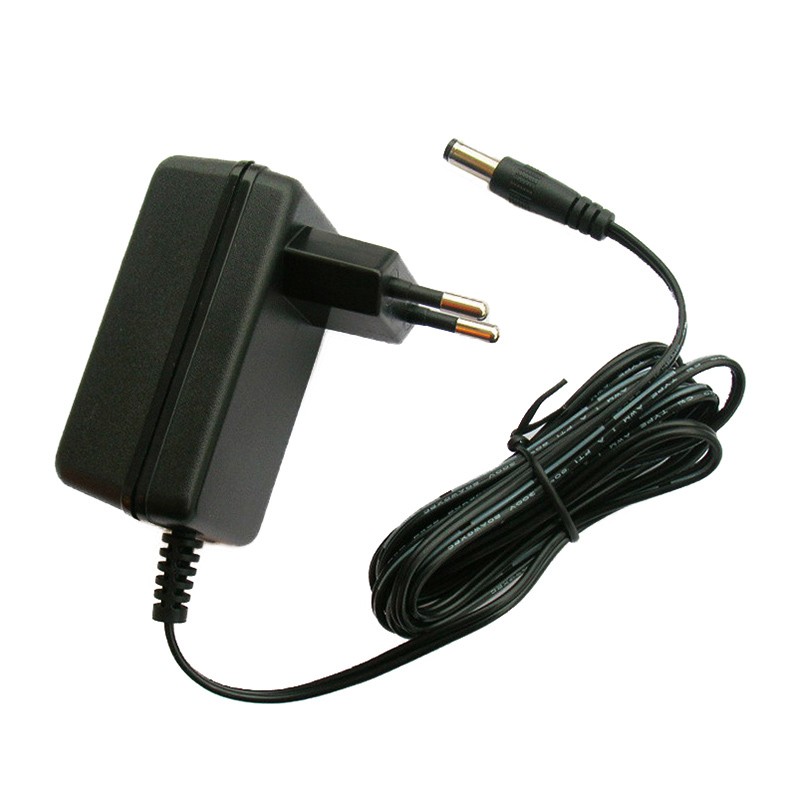

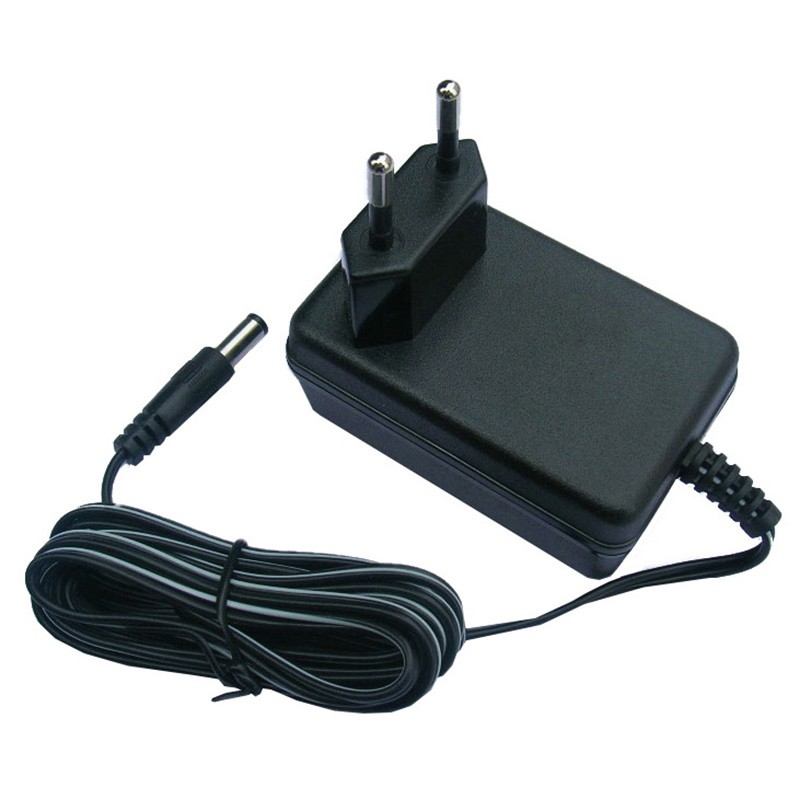

Switching adapter 12V

Model :IN1201500

Output :12V 1.5A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This wall mounted switching adapter 12V 1.5A uses primary-side regulation (PSR) to achieve precise voltage and current regulation without using an optocoupler at a secondary site, thus to minimize the cost and optimize energy efficiency performance. The 12V 1.5 amp AC adapter provides a high-power-density and cost-effective solution for a variety of application field. The 12 volt switching adapter operates at a high switching frequency with a low total standby consumption and low output ripple and noise. The dve switching adapter 12V is equipped with full protection functions to improve the reliability including OCP, OVP, OLP. Effective thermal management enhances reliability further, allows the 12V 1.5A power adapter to operate at full power in higher ambient temperatures.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±5%
	Rated Current	1.5A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	1A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.1kgs

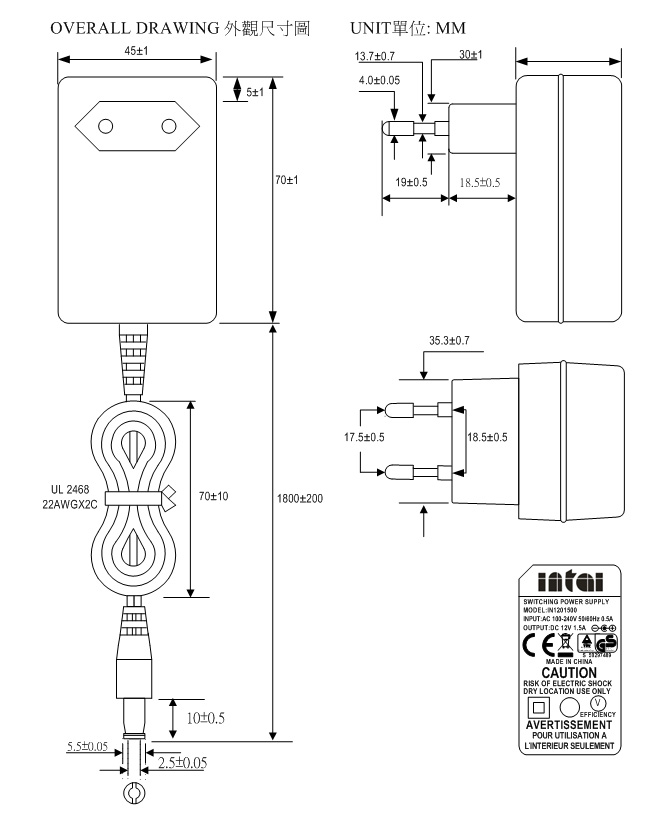

Product Dimension

Safety Certificates

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
