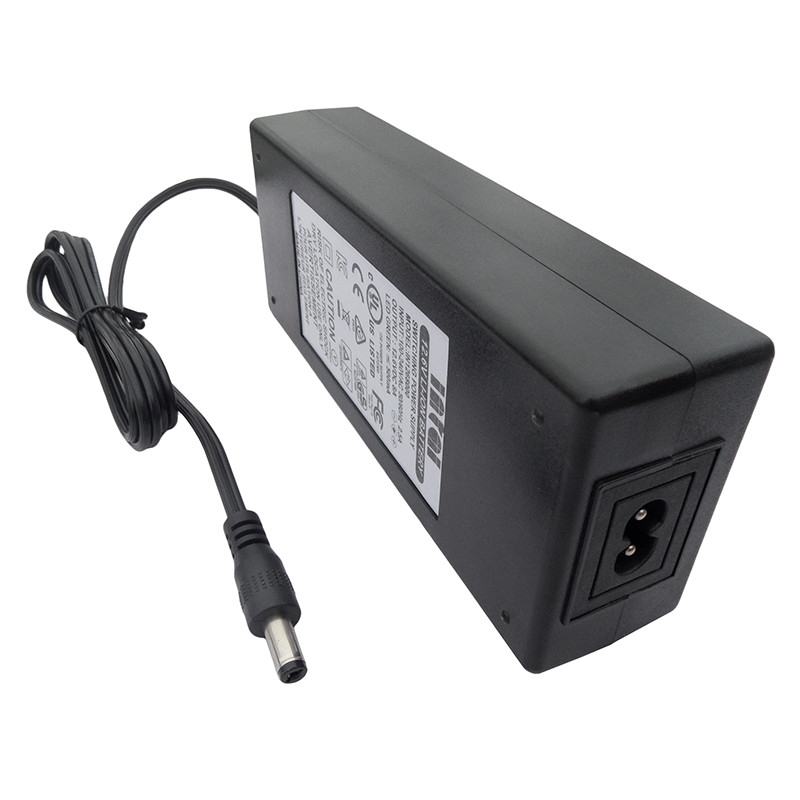

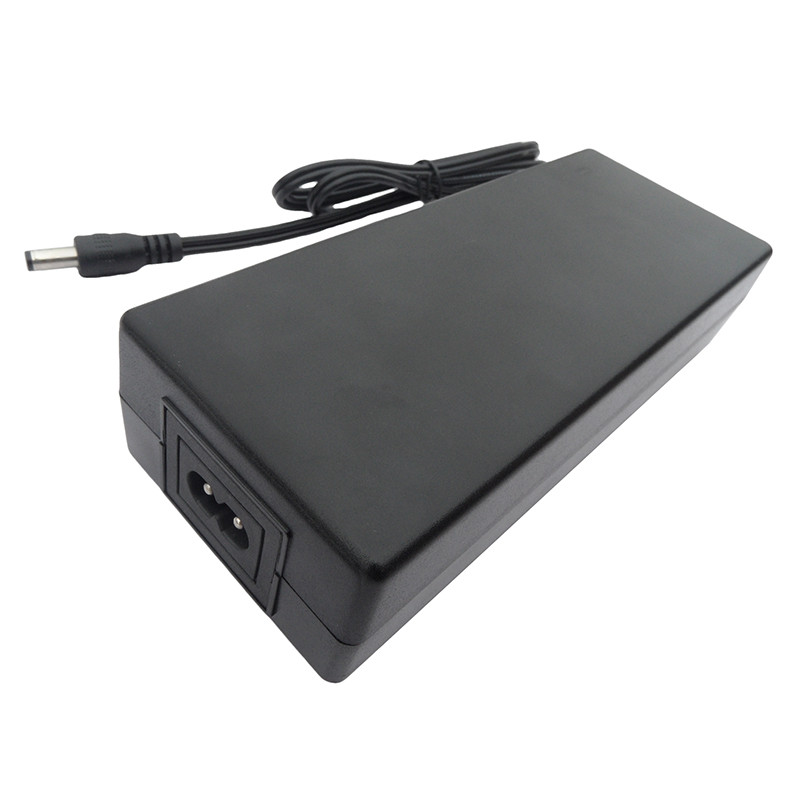

UL listed battery charger
Model :IN4202500
Output :42V 2.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This UL listed battery charger(UL File #E491234, Model #IN4202500) is designed for safe charging of a 36V Lithium ion battery pack of capacity > 8Ah. The 42 volt 2.5 amp li ion charger features.
● Modern algorithms to enable accurate charging
● Microprocessor controlled and full automatic
● Can be custom made to fulfill vary requirements
● Auto cell detection and Pre-charge
● Protect against reverse connection, short circuit and backfeed
● Battery charger UL approved to UL 1012 power units other than Class 2 and Canadian Standard for Battery Charger, CAN/CSA-C22.2 No. 223-15, Third Edition
Intai offers an array of UL listed charger rated from 4.2V to 58.8V with output capability up to 250W. And most of the UL certified chargers also come with CE, PSE, RCM certifications.
The briefing on difference between UL 60950-1 charger and EN60335-1/2-29 charger: Rated input, SELV, Creeping distance, BFP, Fuse...
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 24-42V |
Open Circuit Voltage | 42V±5% | |
Charge Current | 2.5A±5% | |
Battery Type | 10S cell Lithium ion battery | |
Battery capacity recommended | 8AH~16AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 battery charger other than Class 2 | Certificate Number:E491234 |
| UL 60950-1 charger | Certificate Number:E472300 | |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 42V 2.5A UL battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the UL Certified Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

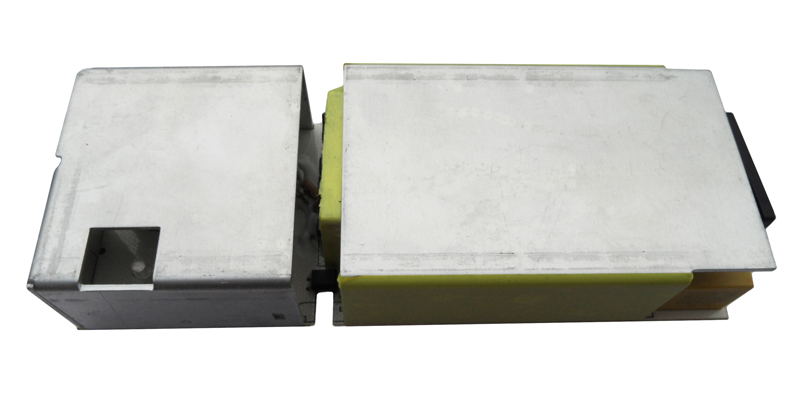

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The UL battery charger works silently and safely. With the application of soft start technology, the output is spark free.
Mechanical Details(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
