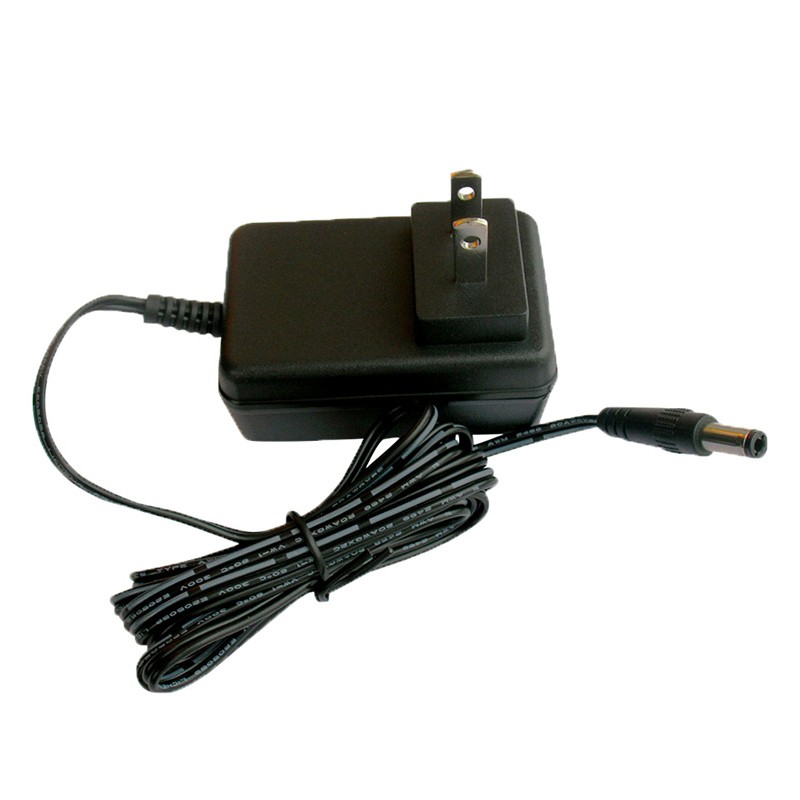

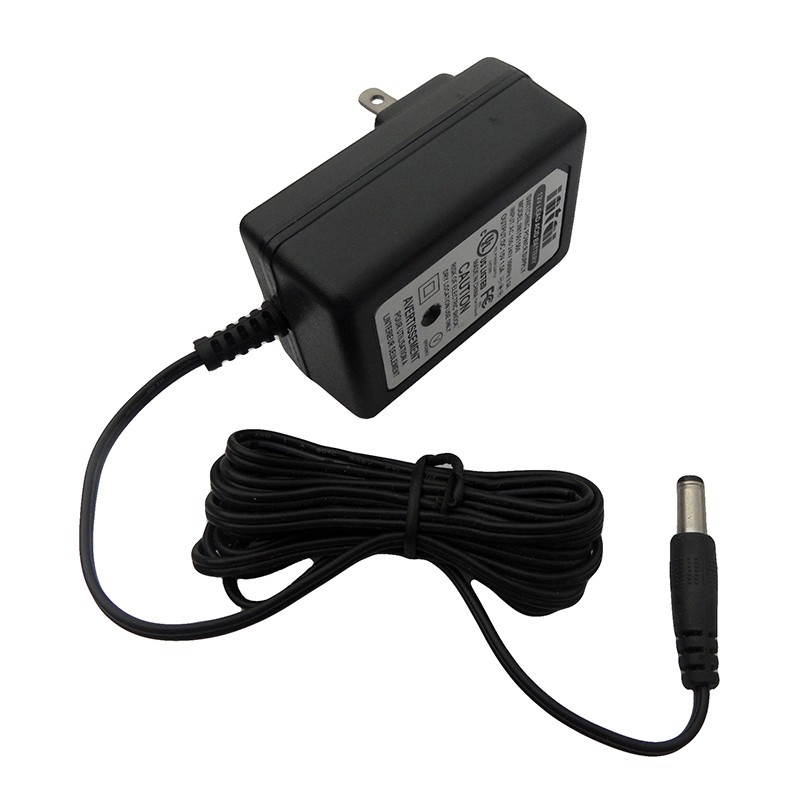

Universal AC adapter

Model :IN1601500

Output :16V 1A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This wall mounted universal AC adapter 16V 1A uses primary-side regulation (PSR) to achieve high accuracy regulation without the use of an optical couple, while resulting in a cost-effective solution. The 16V DC 1A power adapter offers a wide range of safety features including over current protection, over load, short circuit protection for a variety of application field. The ac dc adapter 16V 1000mA meets all existing and proposed energy saving standards worldwide.
The 16V universal AC dc power adapter is safety certified to IEC/UL/CSA/EN 60950-1 and carries the CE mark for the Low Voltage and RoHS Directives. The 230V 16V AC adapter is also compliant to EN 55022-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	16V±5%
	Rated Current	1.5A
	Ripple & Noise	200mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	1A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.1kgs

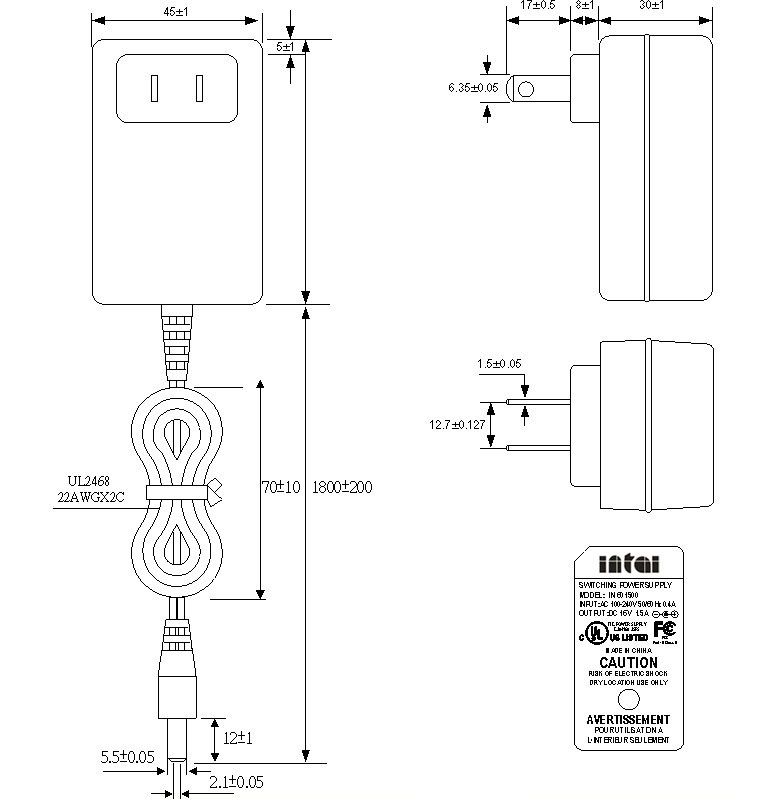

Product Dimension

ac adapter 16v 1a

Safety Certificates

Universal AC dc power adapter

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

16v dc 1a power adapter

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

ac adapter 16v 1a
