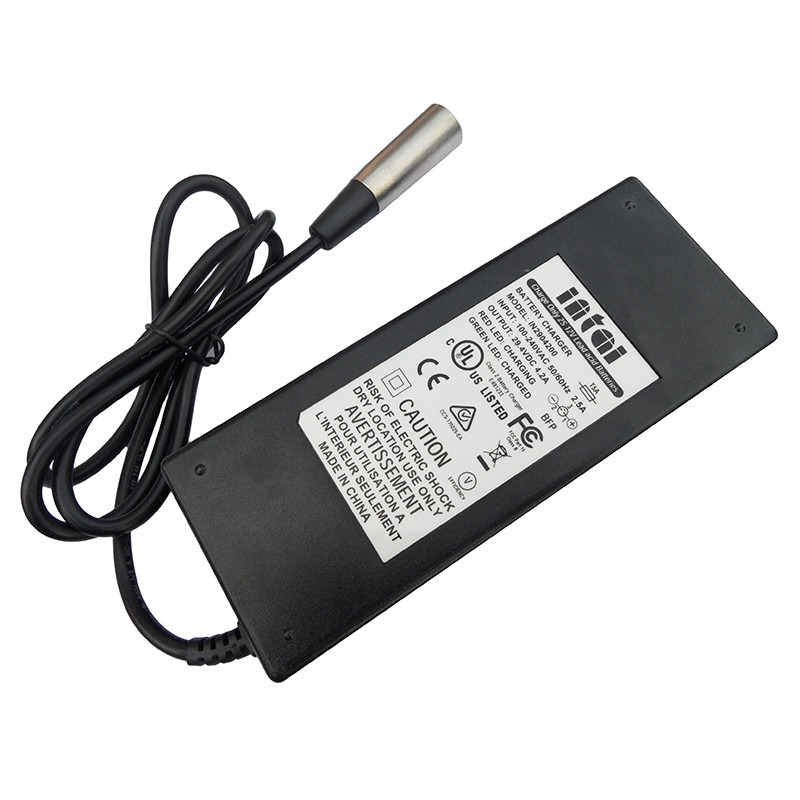

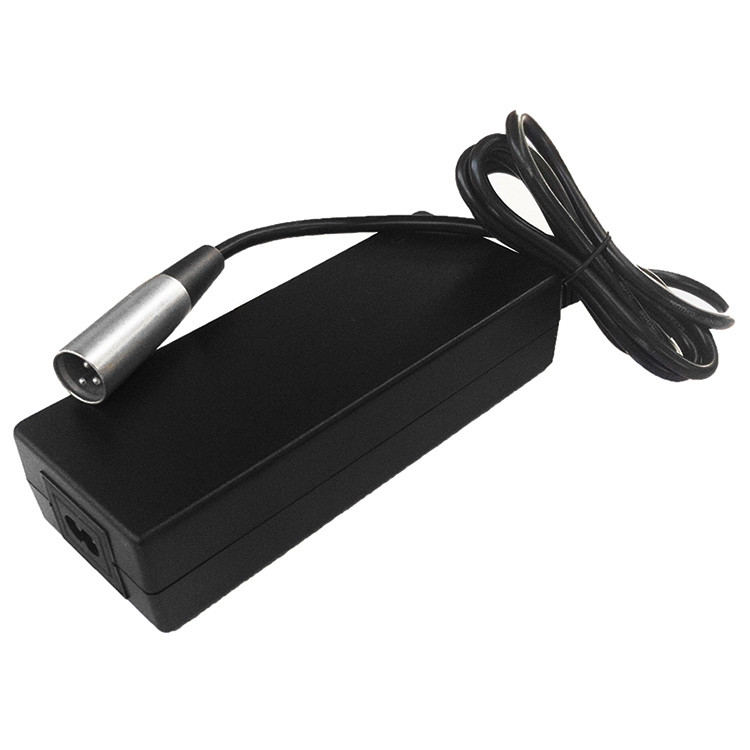

Wheelchair battery charger
Model :IN2904200
Output :29.4V 4.2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The IN2904200 24 volt wheelchair battery charger is particularly suited for mobility applications like wheelchairs or scooters that use the standard 3 pin XLR connector. The electric scooter charger 24 volt is EN 60335-2-29 certified and ISO 7176-25 compliant. It incorporates a built-in safety timer to shut off in any case 12 hours after charging commences, and a power-on indicator in addition to the charge status indicator. While with excellent performance, the charger is an ideal replacement for 24 volt battery charger scooter and 24V power chair charger 24V DC 5A at lower cost.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 17-29.4V |
Open Circuit Voltage | 29.4V±5% | |
Charge Current | 4.2A±5% | |
Battery Type | 2S cell 24 volt Lead acid battery | |
Battery capacity recommended | 16AH~40AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 battery charger other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The electric scooter charger 24 volt 4.2A is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of wheelchair battery charger 24v dc 5a
Red |
|
Green |
|
Red flash |
|

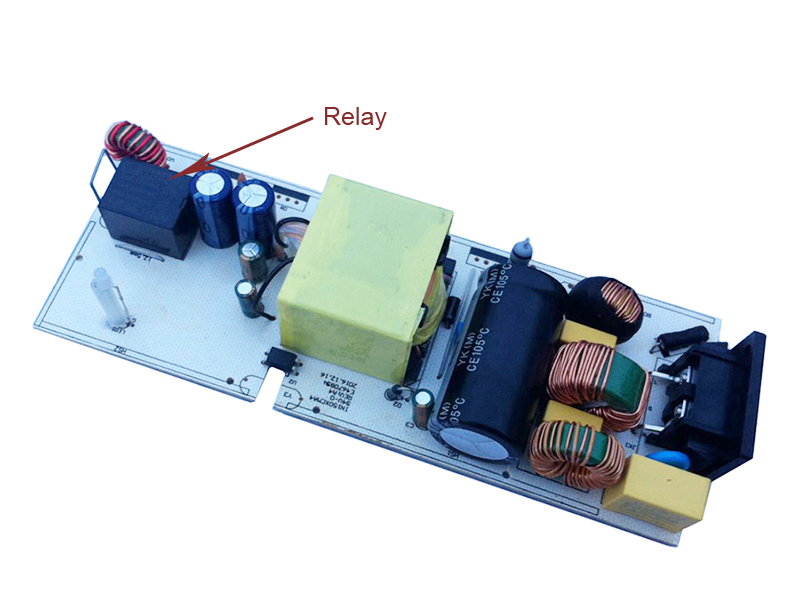

When battery charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

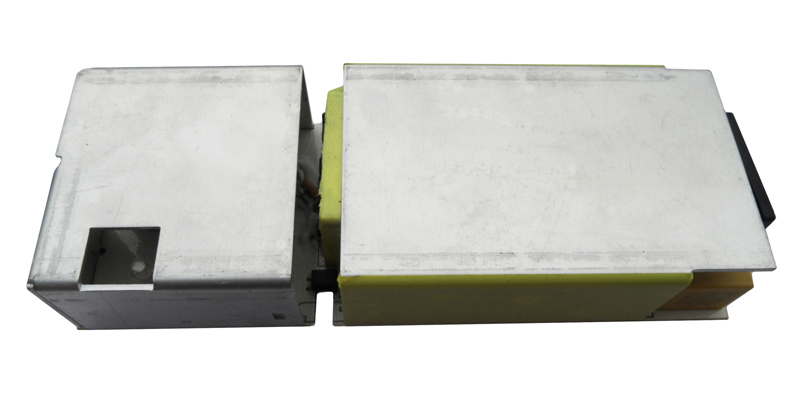

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The wheelchair battery charger 24V DC 5A features eliminating sparks by soft start.

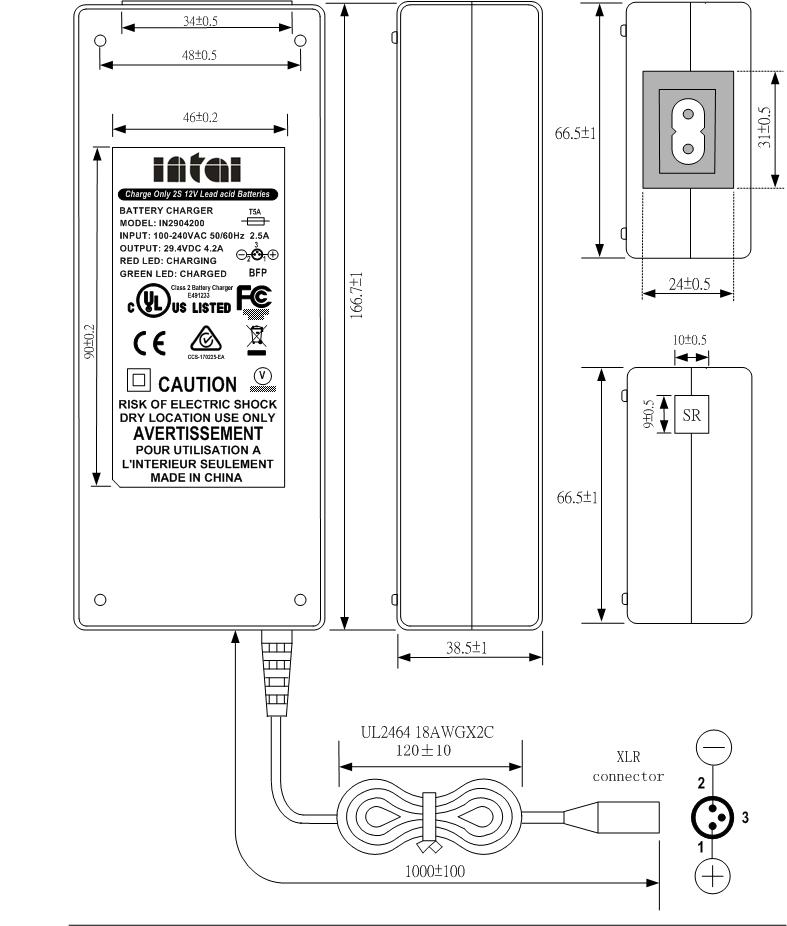

Product dimension(mm)
Safety certificates
